Digital controllers EG-3000 and EG-1000

Digital controllers.

All NST devices are controlled by universal controller EG-3000. All piezo positioner are controlled by controller EG-1000.

Electronic controller EG-3000 is designed to control  SPM or scanning confocal microscope: Centaur, Centaur HR, Snotra, Certus Optic, Certus NSOM, Certus Standard, Certus Light, Ratis, Victus.

Electronic controller EG-1000 is designed to control piezo positioner, such us scanning stage Ratis and one-coordinate slip Vectus.

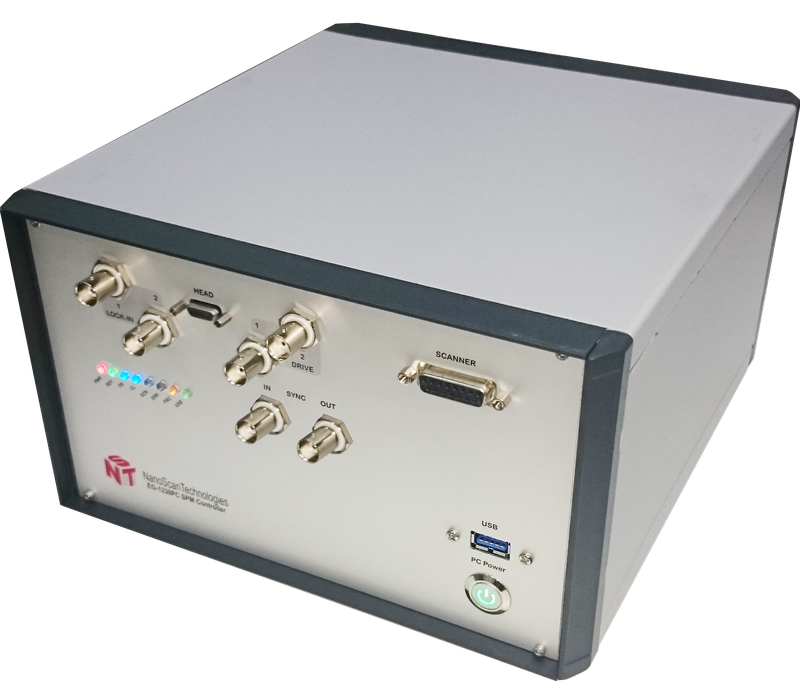

EG3061

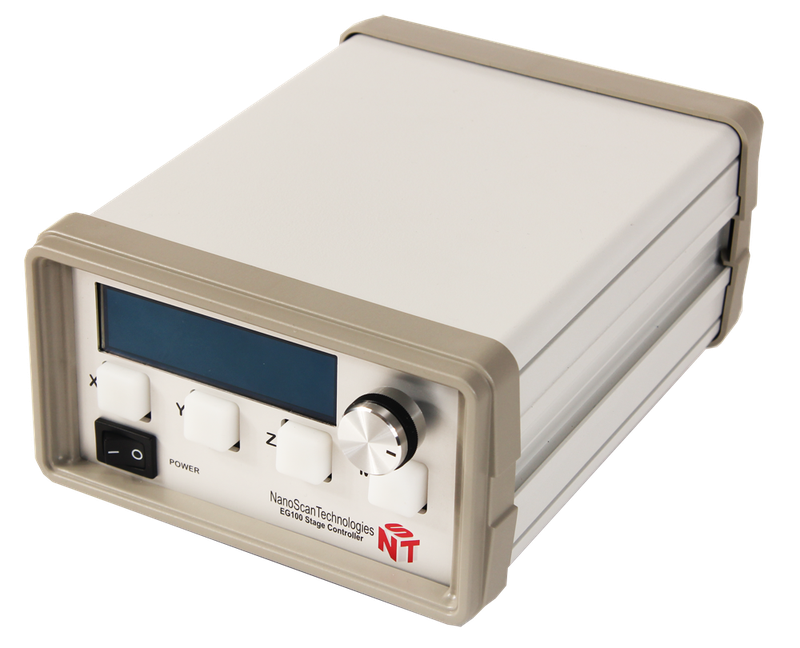

Positioner controller EG-1000

EG-3000 EG-1000

Model

EG3061

EG1000

CPU, Double core

300 Mhz; 32 bit; float. point. RISC

300 Mhz; 32 bit; float. point. RISC

PC Interface

USB 3.0

USB 3.0

High - voltage outputs



Voltage range

-10..150 V

-10..150 V

Noise

< 5 ppm.

< 5 ppm.

Number of channels max

9

3

DACs resolution

18 bit

18 bit

Stepper motors control unit




Number of channels

4

no

Power supply

24V, 3A

no

Microstepping mode support

1/16 step

no

Lock-in amplifier



Number of channels

2

no

Preamplifier gain

1-100

no

Input voltage range

±10 V

no

High speed (100MHz) ADCes resolution

16 bit

no

Signals Band

0-5 MHz

no

Frequency range of main oscillator

10 Hz – 5 MHz

no

Output voltage amplitude

10 mV-10 V

no

Main oscillator stability

< 5 ppm

no

Extra DAC/ADC module

Optional

Number of ADC channels

2

2

Voltage range

±10 V

±10 V

ADC resolution

18 bit

18 bit

Number of DAC channels

2

2

Number of ADC channels

±10 V

±10 V

ADC resolution

18 bit

18 bit
